What Size Masonry Drill Bit for 3/16 Tapcon? (Full DIY Guide)

by

If you’re like me and love tackling home projects with your own two hands, you’ve probably come across Tapcon screws. These little blue marvels are lifesavers when it comes to fastening things into concrete, brick, or block. But one question tripped me up the first time I used them: What Size Masonry Drill Bit for 3/16 Tapcon?

Let’s dive into the answer, break it down in the simplest way possible, and make sure you don’t end up with the wrong drill bit (like I once did).

Quick Answer: What Size Masonry Drill Bit for 3/16 Tapcon?

You need a 5/32″ masonry drill bit for a 3/16″ Tapcon screw.

Yep, not the same size as the screw! That confused me at first too. But here’s why:

  • The hole must be slightly smaller than the screw so the threads can grip the concrete.
  • Tapcon screws are self-tapping, meaning they create their own threads as they go in.

Why It Matters: My Concrete Mistake

Let me tell you a quick story. The first time I installed a wall-mounted hose reel on my concrete garage wall, I used a regular 3/16″ bit for my 3/16″ Tapcons. Seemed logical, right?

Big mistake.

The screws just spun in the holes without gripping. I had to redo everything—wasting time, energy, and a couple of good screws.

I learned the hard way that the right drill bit size is key to a secure hold.

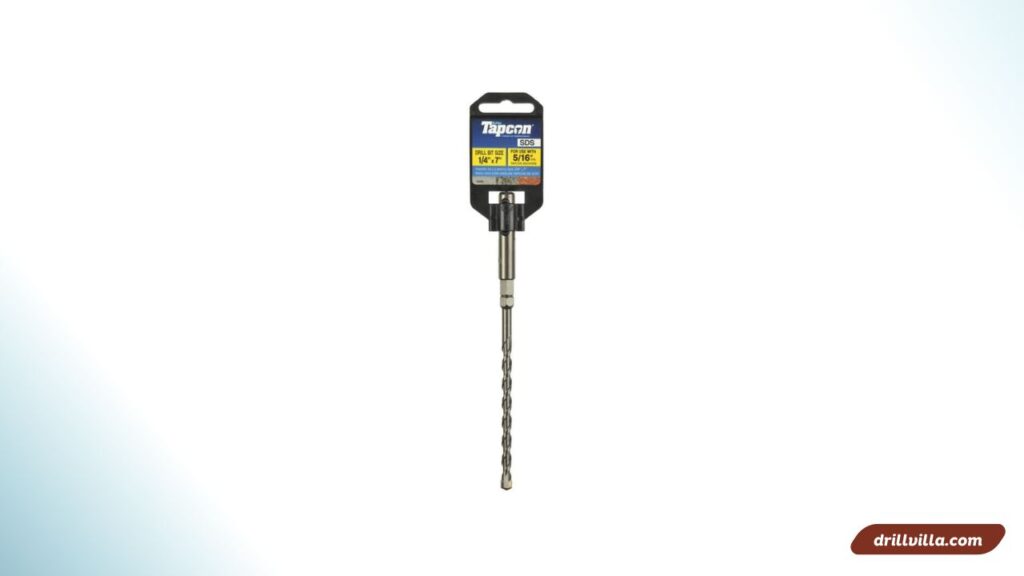

What Size Masonry Drill Bit for 3_16 Tapcon
What Size Masonry Drill Bit for 3_16 Tapcon

Masonry Drill Bit Size Chart for Tapcon Screws

Here’s a handy chart I now keep in my tool chest:

Tapcon Screw SizeMasonry Drill Bit Size
3/16″5/32″
1/4″3/16″

Tip: Always check the packaging! Most boxes list the right bit size.

Understanding Tapcon Screws

Before we go deeper, let’s talk about what makes Tapcons special:

  • Made for masonry: Designed to go into brick, concrete, and block
  • No anchors needed: Tapcons bite directly into the hole
  • Threaded design: Keeps them snug and secure

They come in two main sizes: 3/16″ and 1/4″ diameters, with various lengths depending on what you’re mounting.

How to Drill for 3/16 Tapcon Screws: Step-by-Step

Here’s how I do it when working on a concrete wall:

Tools You’ll Need:

  • Hammer drill (a regular drill won’t cut it)
  • 5/32″ masonry drill bit (carbide-tipped)
  • Tapcon screws (3/16″)
  • Safety glasses and gloves
  • Vacuum or air blower (to clean the hole)

Step-by-Step Instructions:

  1. Mark the Spot: Use a pencil or chalk to mark where you want the screw.
  2. Drill the Hole:
    • Use your hammer drill with a 5/32″ bit
    • Drill at least 1/4″ deeper than the length of the screw
  3. Clean the Hole:
    • Blow out the dust or use a vacuum
    • Dust can prevent proper gripping
  4. Insert the Screw:
    • Align your object and drive the screw in
    • Use a screwdriver or impact driver

Pro Tip: If the screw doesn’t go in smoothly, don’t force it. You may need to clean the hole again or redrill.

Real-World Example: Hanging a Garage Shelf

Last fall, I wanted to install a heavy-duty shelf in my garage to organize paint cans and tools. I used 3/16″ Tapcons and followed the steps above.

The result? That shelf has held up through two Minnesota winters—and trust me, the temp swings are brutal here.

Had I used the wrong drill bit, that thing might’ve ended up on the floor with a bang.

What Happens if You Use the Wrong Bit Size?

I’ve tried both under-drilling and over-drilling in the past. Here’s what happens:

If the hole is too small:

  • The screw might snap
  • You’ll have a tough time getting it in
  • Could damage your drill or driver

If the hole is too large:

  • The screw spins without gripping
  • Weak or unstable hold
  • May pull out under weight

Bottom line? Stick to 5/32″ for 3/16″ Tapcons.

Common Questions About 3/16 Tapcon Installation

Can I use a regular drill?

You can, but I wouldn’t recommend it. A regular drill just doesn’t have the oomph to get through concrete. Use a hammer drill for best results.

Can I use a wood drill bit?

Nope. You’ll burn it out in no time. Use a carbide-tipped masonry bit.

What if the hole fills with dust again?

Blow it out again. Even a bit of dust can cause problems.

Are Tapcons reusable?

Technically yes, but I usually treat them as one-time use. Once those threads are worn down, they don’t hold as well.

What Size Concrete Bit for 3/16 Tapcon?

Let me be honest—this tripped me up the first time I installed Tapcon screws. I had my 3/16″ Tapcon screws ready, my hammer drill in hand, and still messed up the hole size. I grabbed a drill bit that looked close enough. Big mistake.

If you’re wondering what size masonry drill for 3/16 Tapcon, here’s your answer:

👉 Use a 5/32-inch concrete drill bit.
Yep, not 3/16″. It’s smaller on purpose so the Tapcon screw can bite into the concrete.

When I finally used the 5/32″ bit, things went way smoother. The screw gripped tightly, and nothing wobbled.

Here’s a simple tip I learned:

  • 3/16” Tapcon screw = 5/32” concrete bit
  • Drill depth = at least 1/4″ deeper than the screw

If your screw is 1-3/4″ long, drill to at least 2″. That way, any dust or chips don’t block the path.

And trust me, don’t guess the size. I did once, and the screw spun freely inside the hole—zero grip. I had to re-drill, and the wall looked like Swiss cheese.

Quick Table: Concrete Bit Size for Tapcon Screws

Tapcon Screw SizeMasonry Drill Bit SizeDrill Depth Needed
3/16”5/32”Screw length + 1/4”
1/4”3/16”Screw length + 1/4”

Pro Tip: Label your bits with painter’s tape if you’re working fast. It’s easy to grab the wrong one in a rush.

What Size Hammer Drill Bit for 3/16 Tapcon?

Now, if you’re using a hammer drill (which you should for concrete), the question stays the same but gets a bit more specific: What size hammer drill bit should I use for 3/16 Tapcon screws?

Again, you’ll want a 5/32” masonry bit—but it needs to be hammer drill rated.

I’ve made this mistake before too. I used a basic rotary drill bit. It didn’t get deep enough, and the bit started to glow red-hot. Not good.

Here’s what I learned:

  • Only use bits labeled for hammer drilling.
  • They’re made to take the pounding.
  • A regular masonry bit won’t last long in concrete.

So, what size hammer drill bit for 3/16 Tapcon?
👉 5/32” SDS or carbide-tipped bit rated for hammer drills

These bits are tough and cut faster. I used one from Bosch and flew through my basement wall in seconds.

Real Talk: Don’t Cheap Out on Bits

I once grabbed a $1 bit from the bargain bin. It lasted… maybe 3 holes. Now, I just spend a few bucks extra on a quality SDS-plus or hammer drill-rated bit. Totally worth it.

What Size Masonry Drill Bit for 3_16 Tapcon
What Size Masonry Drill Bit for 3_16 Tapcon

Final Thoughts: Get It Right the First Time

Choosing the right drill bit might seem small, but it makes a huge difference. I learned the hard way that 3/16 Tapcons need a 5/32″ masonry bit, not 3/16″.

When you’re working with concrete, there’s little room for error. Use the right tools, take your time, and double-check everything.

With just that one simple tweak, you’ll save yourself a lot of stress.

Trust me, I’ve been there.

Ready to Tackle Your Next Concrete Project?

If you’re planning to mount anything on concrete—a shelf, hose reel, TV bracket, or mailbox—Tapcons are your friend. Just remember:

For 3/16″ Tapcon screws, always use a 5/32″ masonry drill bit.

Thanks for sticking with me. Hope this saves you a headache (and a few screws)!

Happy drilling!
