What size drill bit for a 3/8 tap? That was the exact question I asked myself the first time I tried tapping threads on my own. I didn’t want to guess and ruin a good part—or worse, snap the tap. If you’ve ever stood in your garage holding a tap set and second-guessing your drill bit, you’re not alone. In this guide, I’ll break it down in the simplest way possible—no jargon, no guesswork, just the
I still remember the first time I attempted to tap a hole. I was working on a DIY project, trying to create a threaded hole for a 3/8-inch bolt. I grabbed a drill bit that seemed about right and went to work.
But when I tried to thread the tap, it was either too tight or too loose. That’s when I realized the importance of choosing the correct drill bit size for tapping.
Article Summary
- Understanding Tap and Drill Sizes
- What Size Drill Bit for a 3/8 Tap?
- Why Drill Bit Size Matters
- Calculating Tap Drill Sizes
- Real-Life Application: My Experience
- Tips for Successful Tapping
- Common Mistakes to Avoid
- Tap Drill Size Chart for Quick Reference
- What Size Hole Do You Drill for a 3/8 NPT Tap?
- What Size Hole Do You Drill for a 3/8 Self-Tapping Bolt?
- FAQ: Drill Bit Size for 3/8 Tap
- Conclusion: The Importance of Precision

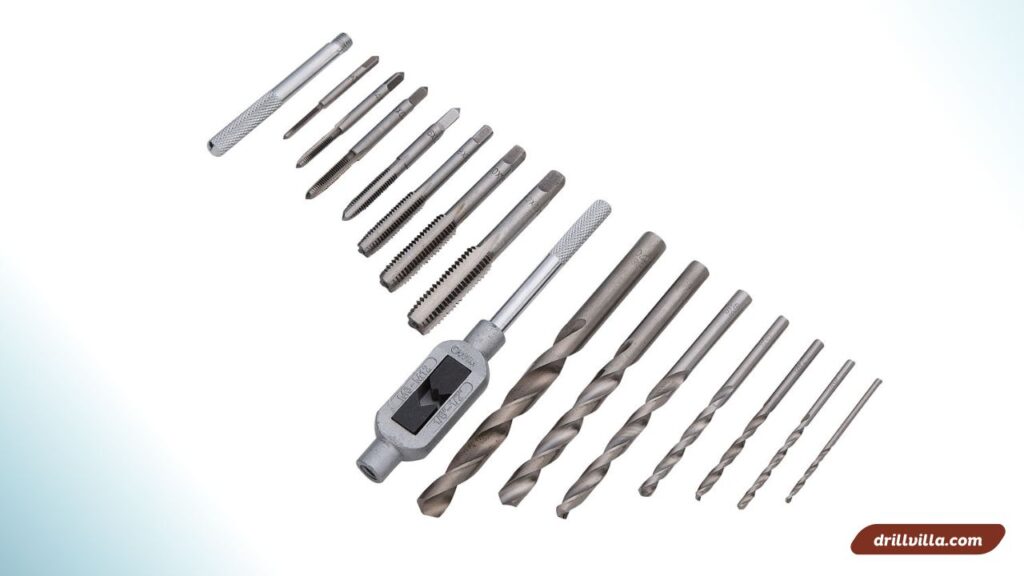

Understanding Tap and Drill Sizes
Before diving into specific sizes, let’s clarify some basics:
- Tap: A tool used to cut internal threads in a hole.
- Drill Bit: A tool used to create the initial hole before tapping.
The key is to drill a hole that’s slightly smaller than the tap size, allowing the tap to cut threads into the material.
What Size Drill Bit for a 3/8 Tap?
The drill bit size depends on the thread pitch of the 3/8 tap. There are two common thread pitches for a 3/8-inch tap:
- 3/8″-16 UNC (Unified National Coarse)
- 3/8″-24 UNF (Unified National Fine)
3/8″-16 UNC Tap
- Threads per Inch (TPI): 16
- Recommended Drill Bit: 5/16″ (0.3125″)littlemachineshop.com+12Newman Tools+12lincolnmachine.com+12
This size provides approximately 75% thread engagement, which is standard for most applications.Reddit+5Newman Tools+5Haas Automation+5
3/8″-24 UNF Tap
- Threads per Inch (TPI): 24
- Recommended Drill Bit: Letter ‘Q’ drill bit (0.332″)
Using a Letter ‘Q’ drill bit ensures proper thread engagement for fine threads.GlowShift Direct+4Wikipedia+4Wikipedia+4
Why Drill Bit Size Matters
Choosing the correct drill bit size is crucial for several reasons:
- Thread Engagement: Too small a hole can lead to excessive thread engagement, making it difficult to tap and increasing the risk of tap breakage.
- Thread Strength: Too large a hole results in shallow threads, reducing the holding strength of the fastener.
- Tool Longevity: Proper hole size reduces wear and tear on your taps, extending their lifespan.
Calculating Tap Drill Sizes
A common formula to calculate the tap drill size is:Newman Tools
Tap Drill Size = Major Diameter – (1 ÷ TPI)
Let’s apply this formula:
For 3/8″-16 UNC:
- Major Diameter: 0.375″
- 1 ÷ TPI: 1 ÷ 16 = 0.0625″
- Tap Drill Size: 0.375″ – 0.0625″ = 0.3125″ (5/16″)americanfastener.comNewman ToolsDrills and Cutters
For 3/8″-24 UNF:
- Major Diameter: 0.375″
- 1 ÷ TPI: 1 ÷ 24 ≈ 0.0417″
- Tap Drill Size: 0.375″ – 0.0417″ ≈ 0.3333″
Since 0.3333″ isn’t a standard drill bit size, we use the closest available, which is a Letter ‘Q’ drill bit at 0.332″.
Real-Life Application: My Experience
While working on a metal fabrication project, I needed to tap several holes for 3/8″-16 bolts. Initially, I used a 9mm drill bit, thinking it was close enough. However, I found the tapping process challenging, and the threads weren’t as clean. Switching to a 5/16″ drill bit made a noticeable difference. The tap went in smoothly, and the threads were crisp and held the bolts securely.lincolnmachine.com
Tips for Successful Tapping
Here are some tips I’ve learned over the years:
- Use Cutting Fluid: Applying cutting fluid reduces friction and heat, making the tapping process smoother.
- Back Off Regularly: After every full turn, rotate the tap half a turn backward to break the chip and prevent binding.
- Keep the Tap Straight: Ensure the tap is perpendicular to the surface to avoid angled threads.
- Clean the Hole: Remove debris and chips from the hole before tapping to prevent damage to the tap and threads.
Common Mistakes to Avoid
- Using the Wrong Drill Bit Size: Always refer to a tap drill chart to select the correct size.
- Forgetting Lubrication: Dry tapping increases the risk of tap breakage.
- Applying Excessive Force: If the tap resists, don’t force it. Back off and check for issues.
Tap Drill Size Chart for Quick Reference
| Tap Size | Threads per Inch (TPI) | Drill Bit Size | Decimal Equivalent |
|---|---|---|---|
| 3/8″-16 UNC | 16 | 5/16″ | 0.3125″ |
| 3/8″-24 UNF | 24 | Letter ‘Q’ | 0.332″ |
What Size Hole Do You Drill for a 3/8 NPT Tap?
When I first needed to tap a 3/8 NPT hole, I had no idea what drill bit to grab. I just knew it had to be right. Too small, and I’d break the tap. Too big, and the threads wouldn’t catch.
So, I did what most of us do—I looked it up, asked a couple of folks, and tested it myself.
Here’s the simple answer:
For a 3/8″ NPT tap, you need to drill a hole that’s 5/8 inches in diameter.
Yep, it’s 5/8″. Not 3/8″ like the tap size says. That threw me off at first. But NPT (National Pipe Thread) sizes are a bit sneaky—they don’t match up directly with the actual hole size.
Here’s a quick cheat sheet I made for myself (and now you):
| NPT Tap Size | Drill Bit Size | Decimal (inches) |
|---|---|---|
| 1/8″ NPT | 21/64″ | 0.3281 |
| 1/4″ NPT | 7/16″ | 0.4375 |
| 3/8″ NPT | 5/8″ | 0.6250 |
| 1/2″ NPT | 27/32″ | 0.8438 |
A few things I learned:
- Always check a tap drill chart when you’re unsure.
- Use cutting oil—trust me, it makes the job smoother and your tap last longer.
- If you’re tapping into metal, make sure your drill bit is sharp and steady.
So if you’re wondering what size drill bit for a 3 8 tap (specifically an NPT tap), go with a 5/8″ drill bit. I’ve used it on both steel and aluminum—it works like a charm.
What Size Hole Do You Drill for a 3/8 Self-Tapping Bolt?
Now, self-tapping bolts are a whole different beast. When I used a 3/8″ self-tapping bolt to mount a bracket on my trailer, I had to figure out what pilot hole size wouldn’t strip or split the metal.
The rule of thumb I follow:
For a 3/8″ self-tapping bolt, drill a 5/16″ pilot hole.
That gives just the right amount of material for the threads to grip. Too small, and you’ll be wrestling with the bolt or snapping it off. Too big, and it won’t hold tight.
Let me break it down for you:
| Bolt Size | Pilot Hole Size (for metal) |
|---|---|
| 1/4″ self-tapping | 3/16″ |
| 5/16″ self-tapping | 1/4″ |
| 3/8″ self-tapping | 5/16″ |
| 1/2″ self-tapping | 13/32″ |
Pro tips from my toolbox:
- If you’re going into soft metal, you might even go down to 9/32″ for a tighter fit.
- Use a little bit of oil to reduce friction.
- Let the bolt do the tapping—don’t over-force it.
If you’re trying to figure out what size drill bit for a 3 8 tap, and it’s a self-tapping bolt, your go-to size is 5/16″.
FAQ: Drill Bit Size for 3/8 Tap
What is the correct drill bit size for a 3/8″-16 UNC tap?
The right size is 5/16″. It gives enough space for the tap to cut clean threads and hold strong.
What drill bit should I use for a 3/8″-24 UNF tap?
Use a Letter ‘Q’ drill bit. It measures about 0.332 inches and works best for fine threads.
Can I use a metric drill bit for a 3/8 tap?
Not a good idea. Metric bits don’t match the thread pitch well. Stick to inch sizes or letter bits for best results.
What happens if I use the wrong drill bit size?
If the hole is too small, tapping will be hard and may break the tap.
If the hole is too big, the threads will be weak, and bolts won’t hold well.
How do I know if my tap is coarse or fine?
Look at the label or tap itself.
- UNC (coarse) has fewer threads per inch.
- UNF (fine) has more threads.
3/8″-16 is coarse.
3/8″-24 is fine.
Do I need oil when tapping?
Yes! Cutting oil helps keep the tap cool and makes cleaner threads. It also prevents the tap from breaking.
Conclusion: The Importance of Precision
Selecting the correct drill bit size for a 3/8 tap is essential for creating strong, reliable threads. Whether you’re working with coarse or fine threads, using the appropriate drill bit ensures ease of tapping and the longevity of your tools. Always consult a tap drill chart and take your time to set up correctly. Precision at this stage saves time and prevents headaches down the line.
