I remember the first time I stood in front of my toolbox, completely confused. I had my tap-and-die set out, ready to cut threads into a hole. But then came the big question: what size drill bit for a 1/2 tap? It felt like I was about to make or break the whole project with one tiny decision.
If you’ve found yourself in that same spot, I’ve got you. Let’s walk through this together—just like if you were standing in my garage, sipping coffee while we troubleshoot this together.
Article Summary
- What Size Drill Bit for a 1/2 Tap?
- What Does 1/2 Tap Mean, Anyway?
- Why the Drill Bit Size Matters So Much
- Tap Drill Size Chart for 1/2 Inch Taps
- Fractional vs Letter vs Number Drill Bits
- Material Matters: Adjusting Drill Size by Material Type
- Tapping Tips: Things I Wish I Knew Earlier
- Common Mistakes to Avoid
- Tools I Use When Tapping
- What If You Don’t Have the Exact Drill Bit?
- 🔩 What Size Drill Bit for a 1/2 Pipe Tap?
- What Size Hole for 1/2 All Thread?
- FAQs: What Size Drill Bit for a 1/2 Tap?
- Final Thoughts: My Drill Bit Size Rule of Thumb
What Size Drill Bit for a 1/2 Tap?
- For a 1/2-13 UNC tap, use a 27/64-inch drill bit.
- For a 1/2-20 UNF tap, use a 29/64-inch drill bit.
These are the standard tap drill sizes for coarse (UNC) and fine (UNF) threads in the 1/2 inch tap category. Don’t worry—we’ll get into what that all means.
What Does 1/2 Tap Mean, Anyway?
When someone says “1/2 tap,” they’re usually talking about a 1/2-inch diameter thread. But there are two types of threads you’ll hear about a lot:
- UNC (Unified National Coarse) – more common in general use
- UNF (Unified National Fine) – finer threads, used for precision
So you might hear:
- 1/2-13 (UNC) – 1/2 inch diameter, 13 threads per inch
- 1/2-20 (UNF) – 1/2 inch diameter, 20 threads per inch
Knowing the thread count is super important because it tells you what size hole you need to drill first.
Why the Drill Bit Size Matters So Much
I once used the wrong size bit for a 1/2 tap and ended up cracking the material. Not fun. Here’s why size matters:
- Too small? You’ll break the tap trying to force it in.
- Too big? The threads won’t hold anything.
It’s all about balance. That’s why using a tap drill chart (we’ll get to that below) can save your project—and your tools.
Tap Drill Size Chart for 1/2 Inch Taps
Here’s a quick chart I keep taped up near my workbench:
| Tap Size | Thread Type | Threads Per Inch (TPI) | Drill Bit Size |
|---|---|---|---|
| 1/2-13 | UNC (Coarse) | 13 | 27/64 inch |
| 1/2-20 | UNF (Fine) | 20 | 29/64 inch |
| 1/2-28 | UNEF | 28 | 15/32 inch |
Note: Always double-check these sizes in a reliable tap drill chart, especially if you’re working with softer materials or critical tolerances.

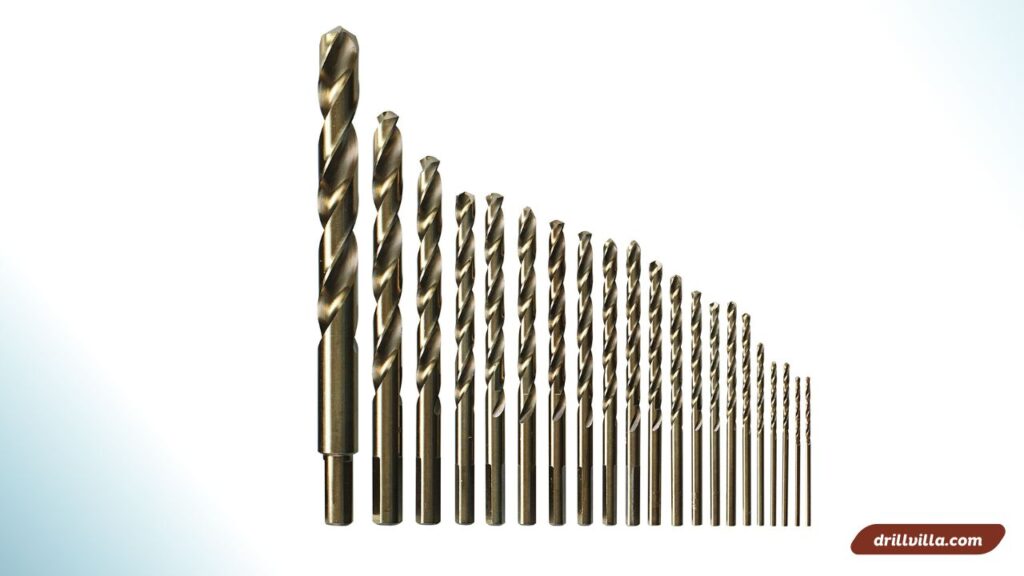

Fractional vs Letter vs Number Drill Bits
This tripped me up early on. Drill bits come in:
- Fractional sizes (like 27/64″) – most common in woodworking or basic metalwork
- Letter sizes (like “R” or “Z”) – often used in precise machining
- Number sizes (like #7) – used when fractional bits don’t quite cut it
For a 1/2-13 tap, 27/64-inch is a fractional bit. So no need to fuss with lettered or numbered bits unless you’re deep into specialty work.
Material Matters: Adjusting Drill Size by Material Type
Now, let’s say you’re drilling into something tricky—like stainless steel or cast iron. In those cases, you might want to go slightly larger on the bit to reduce pressure.
Here’s what I’ve learned:
- Steel – Stick with standard tap size
- Aluminum – You can undersize slightly
- Plastic – Go a tiny bit oversize to prevent cracking
Pro Tip: When in doubt, drill a test hole in scrap material first. It’s saved me more than once.
Tapping Tips: Things I Wish I Knew Earlier
Let me save you some time (and broken taps) with these golden nuggets:
- Use cutting oil – Trust me, it makes a huge difference
- Back out every full turn – Helps break up chips and reduces friction
- Clamp your work – Nothing worse than spinning a part mid-thread
- Go slow – Speed = heat = broken taps
Common Mistakes to Avoid
Oh man, I’ve made them all. Here are a few common goofs:
- Using a cordless drill for tapping – Tapping should be manual unless you’re using a tapping head
- Eyeballing the drill bit size – Always measure
- Skipping the chamfer – A small bevel helps the tap start cleanly
Tools I Use When Tapping
If you’re serious about getting clean threads, here are a few items I keep handy:
- Tap and die set (I use a 40-piece one from GearWrench)
- Tap wrench (don’t try it with pliers, seriously)
- Cutting fluid (like Tap Magic or just regular machine oil)
- Center punch (helps start the hole in the right place)
- Calipers (to double-check bit diameter)
What If You Don’t Have the Exact Drill Bit?
I’ve been there. Maybe your 27/64-inch bit is missing or worn out. You’ve got a few options:
- Use the next closest size down and take your time tapping
- Use the next size up and try a thread locker to secure the fastener
- Order the correct bit online (Amazon, McMaster-Carr, Grainger)
Word of caution: If you’re working on a car or structural component, don’t fudge the size—get the right bit.
🔩 What Size Drill Bit for a 1/2 Pipe Tap?
I remember the first time I had to tap a 1/2-inch pipe thread. I stood in my garage, drill in one hand and a shiny tap in the other, staring at a metal fitting like it was a puzzle missing its last piece. I thought, “Why don’t they just print the drill size on the tap?”
Let me save you that same moment of head-scratching.
If you’re tapping 1/2″ NPT (National Pipe Thread), the drill size you’re looking for is 23/32 inches. Yeah, it’s not your usual size that shows up in a starter drill bit set, but it’s the one you need for a proper fit.
📌 Quick Reference:
| Pipe Tap Size | Drill Bit Size | Decimal Size (in) |
|---|---|---|
| 1/2″ NPT | 23/32″ | 0.71875 |
Why This Size?
NPT threads aren’t like regular bolts and nuts. They’re tapered, which means they get tighter as you screw them in. That 23/32″ bit gives just the right space for the tap to cut a strong thread while still giving the pipe fitting that snug, leak-free twist.
I’ve used this setup for:
- Installing air compressor fittings
- Plumbing for my home brewing setup
- Making custom hydraulic adapters
And every time, that 23/32” bit was spot-on. Trying to use something smaller makes the tap hard to turn. Too big? The threads won’t grip right, and you’ll have leaks. Trust me, I learned the hard way with a puddle of coolant under my truck.
Pro Tip 💡
Use cutting oil. Seriously. It makes tapping way easier and keeps your tools from wearing out. I keep a small bottle in my toolbox just for jobs like these.
What Size Hole for 1/2 All Thread?
This one tripped me up more than once. You’d think “1/2 all thread” means you drill a 1/2-inch hole, right? Nope. Not if you want a clean fit.
When I install 1/2″ all-thread rod, I look at what I’m trying to do:
- If I’m slipping it through a hole, like for anchoring a wood beam or running rod through a wall, I use a 9/16” drill bit.
- If I need to tap threads into the hole for the rod to screw into (less common, but I’ve done it in thick steel plates), that’s when thread pitch matters.
Here’s a simple breakdown:
Clearance Hole (Rod Slides Through)
| Rod Size | Drill Bit Size for Clearance | Reason |
|---|---|---|
| 1/2″ All Thread | 9/16″ | Allows easy pass-through without thread interference |
Tapped Hole (Rod Screws In)
| Thread Type | Thread Pitch (TPI) | Drill Bit Size |
|---|---|---|
| 1/2″-13 UNC | 13 | 27/64″ |
| 1/2″-20 UNF | 20 | 29/64″ |
I mostly use UNC (13 TPI) when I tap holes for 1/2 all-thread. It’s standard, and easier to tap into mild steel or aluminum.
Why Not Just Drill a 1/2″ Hole?
Because 1/2” all thread is exactly 0.5” in diameter. If your drill bit is also 0.5″, it’ll be too tight. Trust me—I’ve had to re-drill more than once after realizing the rod won’t fit or gets stuck halfway through.
When I’m mounting heavy stuff like shelves in my shop or running threaded rod through concrete forms, that little extra wiggle room from a 9/16” hole saves a lot of hassle.
FAQs: What Size Drill Bit for a 1/2 Tap?
Can I use a 1/2-inch bit for a 1/2-13 tap?
Nope. A 1/2-inch hole is way too big. The threads won’t bite. Use a 27/64-inch bit.
Is there a difference between tapping metal and wood?
Yes! For wood, threads are usually self-tapping screws. But if you’re tapping, you’ll likely need a pilot hole that’s just slightly smaller.
What if I tap the wrong size hole?
If it’s too big, you can use a thread insert (like a Helicoil). If it’s too small, you might be able to re-drill and tap the right size.
Do I need special bits for tapping?
Standard high-speed steel (HSS) bits work fine. Just keep them sharp!
Final Thoughts: My Drill Bit Size Rule of Thumb
Whenever someone asks me, “What size drill bit for a 1/2 tap?” I always say: it depends on the thread. But usually, 27/64″ for UNC and 29/64″ for UNF will get you home safe.
I keep a laminated chart on my wall now, because there’s nothing worse than second-guessing when you’re in the zone. It’s one of those little things that makes a big difference in the quality of your work.
Happy tapping, my friend—and may your threads be straight and your bits be sharp!
