What Size Drill Bit for 1/8 Pipe Thread Tap? A Beginner’s Guide

Hey there! If you’re like me, you’ve probably found yourself staring at your toolbox, wondering, “What Size Drill Bit for 1/8 Pipe Thread Tap??” Trust me, I’ve been there. Let’s dive into this together and make sense of it all.

Article Summary

Understanding Pipe Thread Taps
The Magic Number: Drill Bit Size for 1/8 NPT Tap
Drill Bit Size Chart for NPT Taps
Tips for Successful Tapping
Common Mistakes to Avoid
Real-Life Application: Installing a Pressure Gauge
What Size Pilot Hole for 1/8 NPT Tap?
What Drill Bit to Use for a 1/8 NPT Tap?
FAQs on What Size Drill Bit for 1/8 Pipe Thread Tap?
Conclusion

Understanding Pipe Thread Taps

Before we get into the nitty-gritty, let’s clarify what we’re dealing with.

What is a Pipe Thread Tap?

A pipe thread tap is a tool used to cut threads into a hole so that a pipe can be screwed into it. The “1/8” refers to the nominal pipe size, and NPT stands for National Pipe Tapered threads, which are commonly used in the U.S.

Why the Right Drill Bit Size Matters

Using the correct drill bit size is crucial. If the hole is too small, the tap might break. If it’s too big, the threads won’t hold properly. It’s like trying to fit a square peg into a round hole—it just doesn’t work.

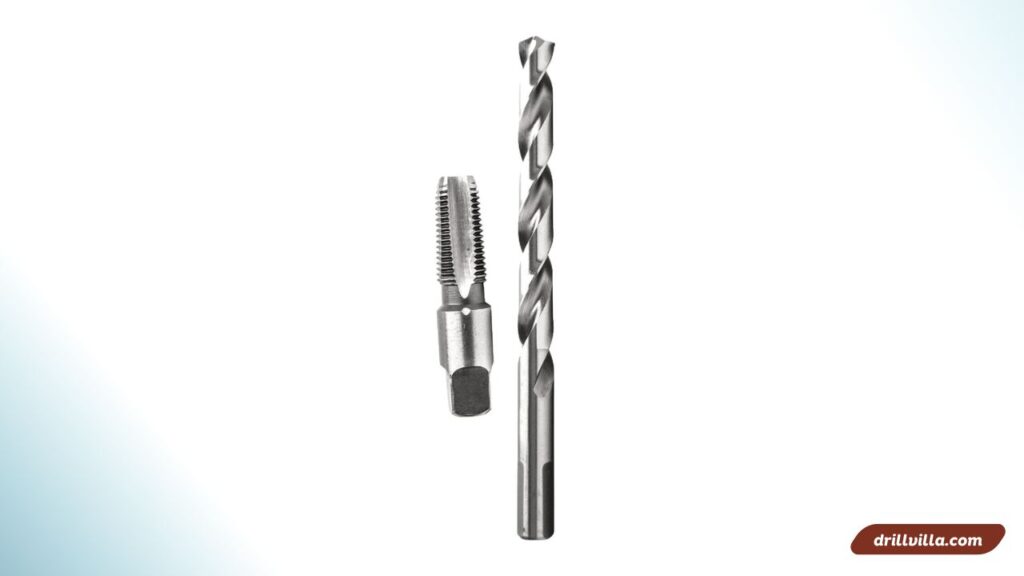

What Size Drill Bit for 1/8 Pipe Thread Tap — what size drill bit for 1 8 pipe thread tap

The Magic Number: Drill Bit Size for 1/8 NPT Tap

So, what’s the answer to our burning question?

For a 1/8″ NPT tap, the recommended drill bit size is R, which corresponds to 0.339 inches or approximately 8.61 mm. (thesensorconnection.com)

I remember the first time I learned this. I was working on a DIY project, trying to install a pressure gauge. I used the wrong drill bit size, and the tap broke inside the hole. It was a nightmare! Since then, I’ve always double-checked the drill bit size before tapping.

Drill Bit Size Chart for NPT Taps

Here’s a handy chart for quick reference:

NPT Tap Size	Drill Bit Size	Decimal (inches)	Decimal (mm)
1/16″	D	0.246	6.25
1/8″	R	0.339	8.61
1/4″	7/16″	0.438	11.11
3/8″	37/64″	0.578	14.68
1/2″	23/32″	0.719	18.26

Tips for Successful Tapping

Over the years, I’ve picked up a few tricks to make tapping smoother:

Use Cutting Fluid: It reduces friction and helps achieve cleaner threads.
Go Slow: Don’t rush. Turn the tap slowly and back it out occasionally to clear chips.
Secure Your Workpiece: Ensure the material you’re tapping is firmly clamped down.

Use the Right Tap Wrench: It provides better control and reduces the risk of breaking the tap.(Wikipedia)

I recall a time when I was impatient and didn’t use cutting fluid. The tap got stuck, and I had to start over. Lesson learned!

Common Mistakes to Avoid

Wrong Drill Bit Size: As we’ve discussed, using the incorrect size can lead to weak threads or broken taps.

Forgetting to Deburr: After drilling, always deburr the hole to remove sharp edges.
Not Cleaning the Hole: Ensure the hole is free from debris before tapping.

Real-Life Application: Installing a Pressure Gauge

Let me share a quick story. I was installing a pressure gauge on my air compressor. I needed to tap a 1/8″ NPT hole. Remembering my past mistake, I grabbed an R drill bit, used cutting fluid, and took my time. The result? Perfect threads and a securely installed gauge.

Absolutely! Here’s the SEO-optimized, first-person, high-readability content for the two subheadings you mentioned, centered around the focus keyword “what size drill bit for 1 8 pipe thread tap” and written in a conversational, relatable tone:

What Size Pilot Hole for 1/8 NPT Tap?

I still remember the first time I tried to use a 1/8 NPT tap. I thought I could guess the pilot hole size. Big mistake. The tap got stuck halfway through, and I had to start over with a new fitting.

So, here’s the simple truth:

👉 The right pilot hole size for a 1/8 NPT tap is 0.339 inches, or an “R” drill bit if you’re using lettered bits. That’s about 8.61 mm if you’re working with metric.

If you drill a hole that’s too small, you’ll stress the tap. It might break, or worse—you’ll mess up your threads. If the hole’s too big, the threads won’t hold pressure. That’s not fun when you’re working on something like an air compressor or a fluid line.

Here’s how I remember it now:

“R for Right” when tapping 1/8 NPT.
Always measure twice, drill once.
Keep a drill size chart nearby. Mine’s taped to my tool chest.

And yeah, always add a bit of cutting oil. It keeps things smooth and clean.

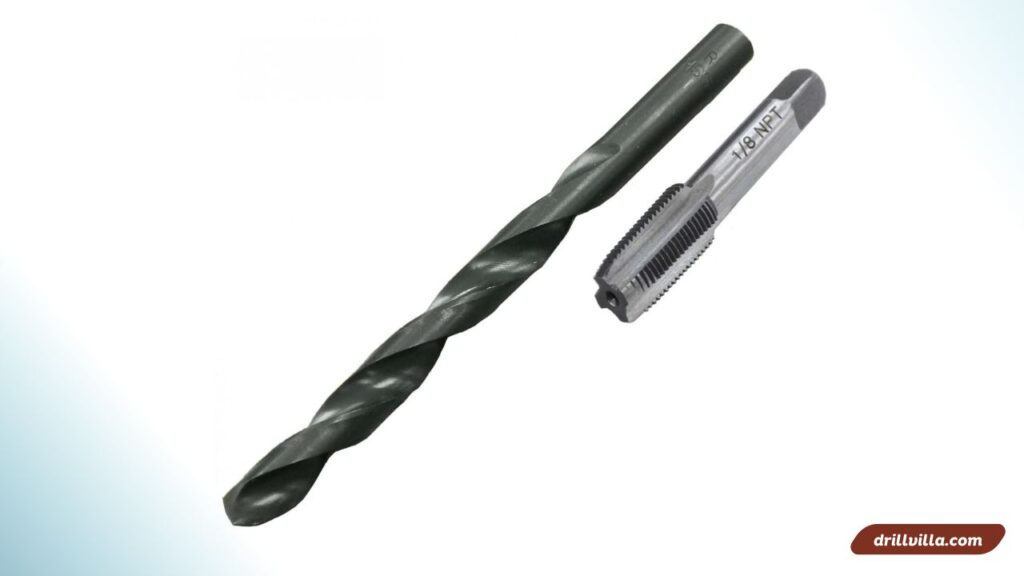

What Drill Bit to Use for a 1/8 NPT Tap?

When I first started tapping pipe threads, I always got stuck on this part. I’d ask myself, “What drill bit should I use for a 1/8 pipe thread tap?”—then go down a rabbit hole of confusing charts and numbers.

Let me save you the trouble.

👉 Use an “R” size drill bit. That’s 0.339 inches or 8.61 mm.

It might feel odd not to use a standard fraction bit like 5/16″ or 3/8″, but trust me, R is the magic size. It gives just the right fit for cutting clean, tight threads with a 1/8 NPT tap.

Here’s what I do before tapping:

Grab my “R” drill bit from the case.
Mark the hole spot clearly.
Drill straight—no wobbles.

Deburr the hole to keep things tidy.
Then slowly tap it in, turning back a bit every few turns to clear the chips.

I’ve tried using bits that were “close enough” in size, and it always caused trouble. Either the tap broke, or the threads didn’t hold right. Since switching to the proper bit, I haven’t had a single issue.

FAQs on What Size Drill Bit for 1/8 Pipe Thread Tap?

Q: What size drill bit should I use for a 1/8 NPT tap?

A: I always use an “R” drill bit for a 1/8 pipe thread tap. It measures 0.339 inches (about 8.61 mm). This size gives the perfect hole for clean, tight threads.

Q: Can I use a 5/16” drill bit instead of an R bit?

A: I’ve tried it—and no, I wouldn’t recommend it. A 5/16” bit is too small. Your tap will feel tight, and it might break or strip out. Stick with the R bit. Trust me, it saves a lot of trouble.

Q: Why does the 1/8 NPT tap need such an odd drill size?

A: Great question! NPT taps are tapered, not straight. They need a special hole size to cut threads that seal properly. That’s why an R drill bit (0.339”) works best—it balances grip and thread depth just right.

Q: Is the R drill bit a standard size? Where do I get one?

A: Yup, it’s a standard letter-size bit. I found mine at my local hardware store, but you can also get one online as part of a letter drill bit set. They’re easy to find once you know what you’re looking for.

Q: What happens if I use the wrong drill bit?

A: If the hole is too small, the tap may bind or snap. If it’s too large, your threads might leak. I made both mistakes early on—learned the hard way. Using the right bit (R size) made all the difference.

Conclusion

So, to wrap it up:

Drill Bit Size for 1/8″ NPT Tap: Use an R drill bit (0.339 inches or 8.61 mm).
Take Your Time: Rushing can lead to mistakes.
Use Proper Tools and Techniques: They make all the difference.(thesensorconnection.com)

Remember, every expert was once a beginner. Don’t be afraid to make mistakes; just learn from them. Happy tapping!
