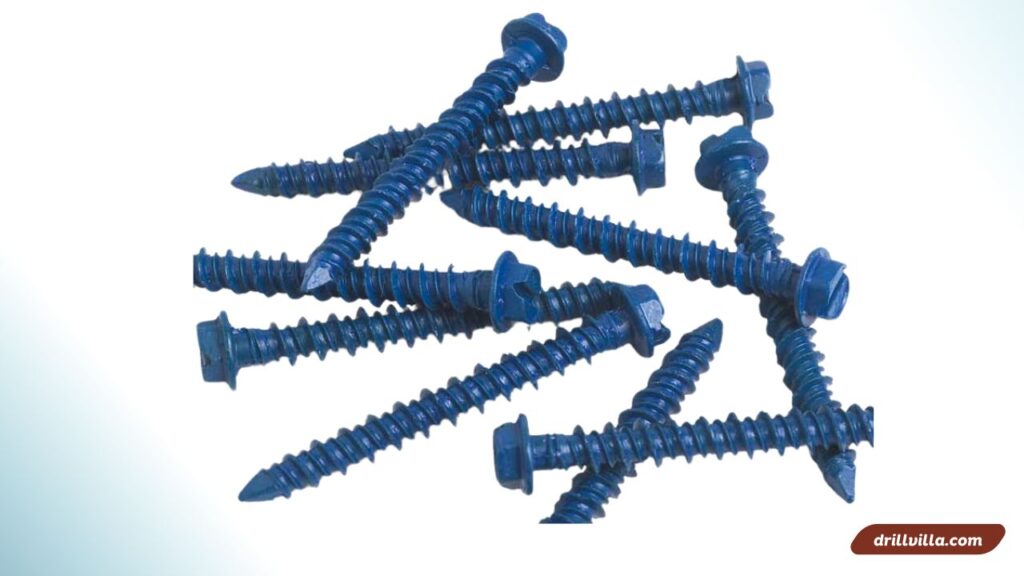

When I first started using Tapcon screws, I had one big question on my mind: what size drill bit do I need for a 1/4 Tapcon? You’d think it would be easy, right? But after some trial, error, and a few stripped screws later, I finally figured it out.
Let me walk you through everything I’ve learned about drilling the right hole for 1/4-inch Tapcon screws. This guide is perfect whether you’re hanging a heavy shelf on a concrete wall or just securing something to a brick column.
Article Summary
- Quick Answer: What Size Drill Bit for 1/4 Tapcon?
- Why the Drill Bit Size Matters
- My Personal Experience with Tapcons
- Types of Materials You Might Drill Into
- Tips for Using a 1/4 Tapcon Screw
- Recommended Drill Bit Brands I Trust
- What Drill Bit Type Should You Use?
- FAQs About Tapcon Drill Bit Sizes
- Drill Bit vs Tapcon Screw Size Chart
- Final Thoughts
Quick Answer: What Size Drill Bit for 1/4 Tapcon?
You need a 3/16-inch drill bit for a 1/4-inch Tapcon screw.
Yep, it sounds odd, but it’s true. The hole needs to be smaller than the screw diameter so the threads bite into the concrete.
Here’s a quick table:
| Tapcon Screw Diameter | Drill Bit Size Needed |
|---|---|
| 3/16 inch | 5/32 inch |
| 1/4 inch | 3/16 inch |
Why the Drill Bit Size Matters
When I first used Tapcon screws, I grabbed a drill bit the same size as the screw. Big mistake! The screw didn’t hold at all.
Think of it like threading a needle. If the hole’s too big, the screw has nothing to grip. Too small, and you might break the screw or wear out your bit. Getting the size right means:
- Stronger grip
- Less chance of the screw snapping
- Cleaner installation
- Better load-bearing support
My Personal Experience with Tapcons
A few years ago, I was installing wall shelves in my garage. I had concrete block walls and a bunch of power tools ready to go. I drilled the holes with a 1/4-inch bit for 1/4 Tapcon screws. You can guess what happened next…
The screws spun freely. They didn’t anchor. I ended up redoing every hole with a 3/16-inch bit and bam! The screws grabbed tight.
That lesson stuck with me, and now I never drill without double-checking bit size.
Types of Materials You Might Drill Into
The drill bit size stays the same regardless of the surface, but different materials behave differently.
Here’s what I’ve worked with:
- Concrete: Hard, dense, and requires patience. Tapcon holds strong.
- Brick: Easier than concrete but can crack. Use gentle pressure.
- Block: Often hollow inside. Go slow and deep enough for the anchor.
- Stone: Toughest of all. Expect wear on your bit.
No matter the surface, I always use a hammer drill. It makes a world of difference.
Tips for Using a 1/4 Tapcon Screw
From one DIYer to another, here are some tricks I’ve learned:
- Use a hammer drill — It saves time and effort.
- Blow out the dust — I use a shop vac or a can of air. Dust prevents a good grip.
- Drill at least 1/4″ deeper than the screw length.
- Use Tapcon brand bits if possible — They’re designed for the screws.
- Don’t overtighten — You can strip the hole or snap the screw.
Recommended Drill Bit Brands I Trust
Here are some brands that have never let me down:
- Bosch BlueGranite
- DEWALT Carbide Tipped Bits
- Irwin Masonry Bits
- Tapcon Drill Bits (designed just for Tapcon screws)
What Drill Bit Type Should You Use?
For concrete and masonry, always use carbide-tipped masonry bits. They last longer and can handle the hammering action.
Avoid standard twist bits – they’ll dull out fast and make a mess.

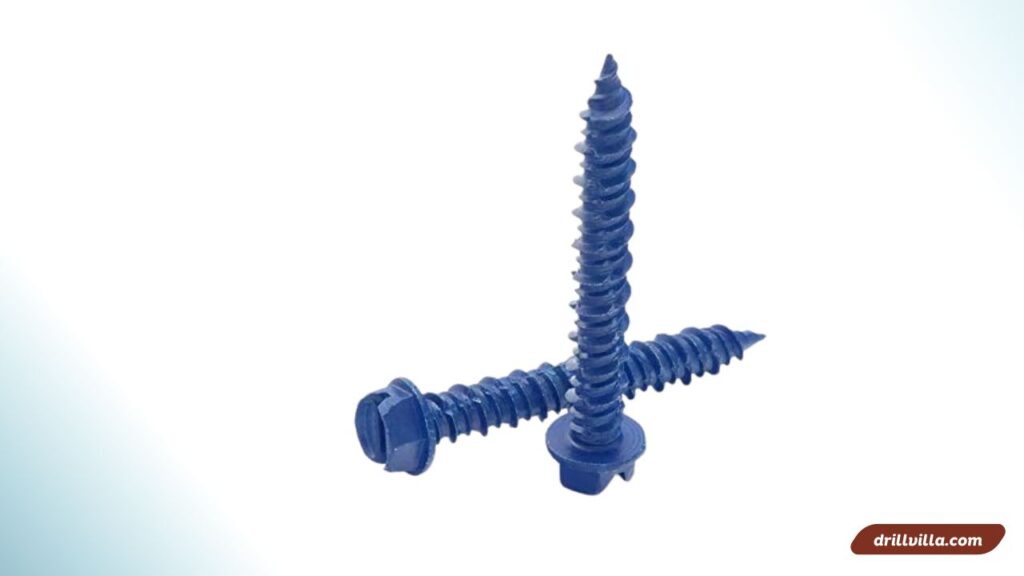

What Size Drill Bit for 1/4 Tapcon Screw? (My Go-To Choice)
When I first started working with concrete anchors, I had no clue what size drill bit to use for a 1/4 Tapcon screw. I thought, “It’s just a screw—how hard can it be?” But trust me, getting the size right makes all the difference. If your hole is too small, you’ll struggle. Too big, and the screw won’t grip.
So, what size drill bit for 1/4 Tapcon? Here’s what I learned—you’ll need a 3/16-inch drill bit.
Yep, that’s the magic number.
Why 3/16-Inch Works Best
Let me break it down. Tapcon screws are designed to bite into concrete, brick, or block. They need a tight hole to grip properly. The 3/16-inch bit gives you just enough room for the screw to thread itself into the material.
Here’s how I remember it:
- 1/4 Tapcon screw = 3/16-inch bit
- The bit must match the screw type (standard Tapcon vs large diameter)
- Always double-check the screw packaging—it usually lists the correct drill bit
Quick Drill Bit Size Chart for Tapcon Screws
| Tapcon Screw Size | Drill Bit Size Needed |
|---|---|
| 3/16″ | 5/32″ |
| 1/4″ | 3/16″ |
| 5/16″ | 1/4″ |
A Little Tip From Me
I used to rush and drill right into the concrete without thinking. That led to broken bits and stripped holes. Now I always:
- Use a hammer drill (not a regular drill!)
- Go at least 1/4 inch deeper than the screw length
- Clean out the hole with air or a brush
Taking just a little more time saves me a lot of frustration
What Size Drill Bit for 1/4 Inch Tapcon Screw? (Let’s Keep It Simple)
Okay, so maybe you typed it a little differently—“what size drill bit for 1/4 inch Tapcon screw”—but guess what? It’s the same answer.
I remember getting confused when I saw different phrasing online. Some folks say “1/4 Tapcon,” others say “1/4 inch Tapcon.” But they’re talking about the same screw.
Here’s what hasn’t changed:
- Use a 3/16-inch carbide-tipped masonry bit
- It needs to be Tapcon-approved (cheap bits don’t last)
- Drill straight and steady—no wiggling!
Helpful Reminders for Next Time
I always keep this list in my workshop:
- ✅ 1/4 Tapcon screw = 3/16-inch drill bit
- ✅ Use hammer drill + masonry bit
- ✅ Go deeper than the screw
- ✅ Clear the hole before inserting the screw
These are all part of the same family of questions. If you’re here, you’re probably drilling into something solid—concrete, brick, block—and you just want to get it right the first time.
If you’re asking what size drill bit for 1/4 Tapcon, the answer is 3/16 inch. Plain and simple.
I’ve made this mistake before. I’ve used the wrong size and ended up with loose screws or busted drill bits. Now that I know the right size, my installs are solid and stress-free.
Want to make your life easier? Write “1/4 Tapcon = 3/16 drill” on a sticky note and slap it on your toolbox. I did—and I haven’t messed up since.
FAQs About Tapcon Drill Bit Sizes
Q: Can I use a regular drill for Tapcons?
A: Technically yes, but it’s way harder. A hammer drill is much faster and cleaner.
Q: What if I drill too big a hole?
A: You might need to upsize to a 5/16 Tapcon or use an anchor sleeve.
Q: Do I need to use Tapcon brand bits?
A: Not mandatory, but they match Tapcon threads perfectly.
Q: How deep should I drill?
A: At least 1/4″ deeper than the screw length to allow dust to settle.
Q: Can I reuse Tapcon holes?
A: Not really. Once the hole is stripped, it won’t hold well again.
Drill Bit vs Tapcon Screw Size Chart
| Tapcon Screw Size | Pilot Hole (Drill Bit) | Minimum Embedment |
|---|---|---|
| 3/16″ | 5/32″ | 1″ |
| 1/4″ | 3/16″ | 1-1/4″ |
| 5/16″ | 1/4″ | 1-1/2″ |
Final Thoughts
If you’re asking what size drill bit for 1/4 Tapcon, I hope this guide makes your job a whole lot easier. I’ve made all the rookie mistakes so you don’t have to.
Just remember: 1/4 Tapcon = 3/16 drill bit. Keep that little formula in your toolbox, and you’ll never second-guess it again.
Now go get those shelves up, that frame hung, or that bracket secured. You’ve got this — and if you mess up, hey, I probably did too.
