Spindle travel on a drill press is the distance the spindle moves up and down. It determines how deep a drill can penetrate into the material.
Understanding spindle travel is key for efficient drilling. It influences the precision and depth of your work. On a drill press, the spindle holds the drill bit and moves vertically. The travel distance varies by machine. Knowing this helps you choose the right drill press for your needs.
Whether you’re a hobbyist or a professional, understanding spindle travel can improve your projects. It helps ensure you get accurate, clean holes every time. Dive into the details to make the most of your drill press.
Article Summary
Introduction To Spindle Travel
Ever wondered how deep your drill press can go? That’s where spindle travel comes into play. Imagine you’re drilling holes in a piece of wood, and suddenly the drill bit doesn’t go any deeper. This situation can be frustrating, right? Understanding spindle travel can help you avoid such hiccups. Let’s dive into this essential aspect of your drill press!
Definition Of Spindle Travel
Spindle travel, also known as quill travel, is the distance the drill bit can move up and down. Think of it as the maximum depth your drill press can reach. For example, if your drill press has a spindle travel of 4 inches, it means the bit can move down 4 inches from its starting position.
Importance In Drilling
So, why is spindle travel important? Here are a few reasons:
- Depth Control: It helps you know how deep you can drill, avoiding mistakes or incomplete holes.
- Project Requirements: Different projects need different hole depths. Understanding spindle travel ensures you choose the right drill press.
- Efficiency: Knowing your spindle travel can save time and effort, making your drilling tasks smoother.
Picture this: you’re working on a DIY project, building a wooden table. You need to drill deep holes for the legs. If your drill press has limited spindle travel, you might not reach the desired depth. This could lead to unstable legs and a wobbly table – not what you want, right?
In essence, spindle travel is a crucial feature for anyone serious about drilling. Whether you’re a hobbyist or a professional, knowing the spindle travel of your drill press can make a significant difference in your projects.
Credit: www.amazon.com
Measuring Spindle Travel
When working with a drill press, understanding spindle travel is crucial. But what exactly is spindle travel, and how do you measure it? In simple terms, spindle travel refers to the distance the spindle, which holds the drill bit, can move up and down. Knowing this measurement is essential for making precise holes and ensuring consistent results in your projects. Let’s dive into the details of measuring spindle travel, ensuring you have the knowledge and confidence to tackle your drilling tasks effectively.
Tools For Measurement
Before you begin measuring spindle travel, you need a few basic tools. Don’t worry, these are common tools you might already have in your workshop:
- Ruler or Tape Measure: A simple, yet effective tool for measuring distances.
- Caliper: For more precise measurements, a caliper can be incredibly useful.
- Marker or Pencil: To mark positions on the spindle and worktable.
Step-by-step Guide
Measuring spindle travel might sound complicated, but it’s quite straightforward if you follow these steps:
- Step 1: First, ensure the drill press is unplugged for safety. Safety first, always!
- Step 2: Lower the spindle all the way down using the feed handle. This is the starting position.
- Step 3: Use your marker or pencil to mark the spindle at the point where it meets the drill press table or base.
- Step 4: Now, raise the spindle all the way up using the feed handle.
- Step 5: Measure the distance between the marked point and the new position of the spindle using your ruler or tape measure.
- Step 6: For more precision, you can use a caliper to measure the exact distance. This distance is your spindle travel.
And there you have it! By following these steps, you can accurately measure the spindle travel of your drill press. Remember, knowing your spindle travel helps in achieving consistent results and avoiding mistakes in your projects. So, the next time you’re setting up your drill press, take a moment to measure and ensure everything is in order. Happy drilling!
Factors Affecting Spindle Travel
Spindle travel is a crucial feature of a drill press, determining how deep you can drill into a material. But have you ever wondered what influences spindle travel? Several factors come into play, and understanding them can help you choose the right drill press for your needs. Let’s dive into the two main factors: the drill press model and the type of drill bit you use.
Drill Press Model
Different models of drill presses come with varying spindle travel capabilities. Some models are designed for simple tasks and have shorter spindle travel, while others are built for more complex projects with deeper drilling requirements.
- Entry-level Models: These typically have a spindle travel of around 2-3 inches. They are perfect for light woodworking or small DIY projects.
- Mid-range Models: Spindle travel for these models can range from 3-4 inches. They are versatile enough for both home workshops and small businesses.
- Professional Models: Expect to see spindle travel of 4 inches or more. These are ideal for heavy-duty tasks and professional use.
Choosing the right model depends on your specific needs. Are you drilling simple holes or working on intricate pieces? The model you choose will greatly influence your spindle travel and, ultimately, your project’s success.
Drill Bit Type
Believe it or not, the type of drill bit you use also affects spindle travel. Different bits are designed for different tasks, and their size and shape can influence how deep you can drill.
| Drill Bit Type | Spindle Travel Impact |
|---|---|
| Twist Bits: | These are your standard bits. They are versatile but may limit spindle travel in harder materials. |
| Spade Bits: | Great for larger holes in wood but require significant spindle travel. |
| Forstner Bits: | Perfect for flat-bottom holes and allow for precise spindle travel adjustment. |
Using the right drill bit not only makes your work easier but also ensures you get the most out of your drill press’s spindle travel. So, next time you start a project, think about the bit you’re using and how it could affect your drilling depth.
In conclusion, understanding the factors that affect spindle travel can make a significant difference in your projects. Whether it’s the model of your drill press or the type of bit, each element plays a vital role. So, equip yourself with the right knowledge and tools, and happy drilling!

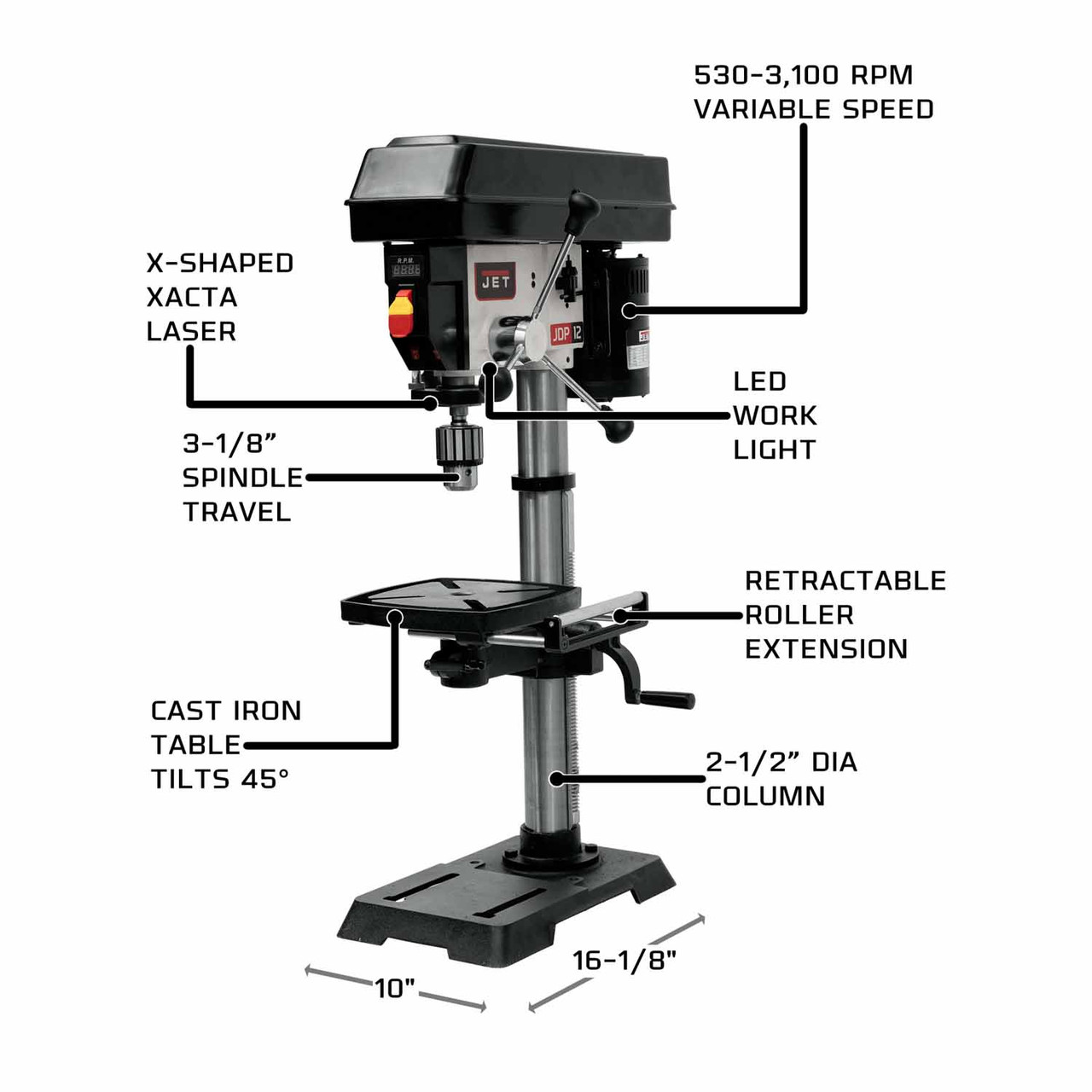

Credit: www.thewoodturningstore.com
Optimal Spindle Travel Range
When you’re diving into the world of drill presses, one term you will repeatedly come across is ‘spindle travel’. But what exactly is spindle travel, and why does its range matter? Understanding the optimal spindle travel range is crucial for achieving precision in your projects, whether you’re drilling into wood, metal, or any other material. Let’s break it down into bite-sized pieces.
Standard Measurements
Spindle travel, also known as quill travel, refers to the maximum distance the spindle can move up and down. This movement determines how deep you can drill into your material. The standard spindle travel for most drill presses ranges between 2 to 6 inches. Here’s a quick reference table to help you understand better:
| Type of Drill Press | Spindle Travel (inches) |
|---|---|
| Benchtop Drill Press | 2-4 |
| Floor Drill Press | 4-6 |
So, if you’re working on thicker materials, you’ll want a drill press with a higher spindle travel. But it’s not just about depth; it also affects the accuracy and stability of your drilling operation.
Adjusting For Different Materials
Different materials require different spindle travel adjustments. For instance, when drilling into softwood, you might not need as much spindle travel compared to when you’re working with hardwood or metal. Why? Because softer materials are easier to penetrate and don’t require as much force.
- Softwood: Typically, 2-3 inches of spindle travel is sufficient.
- Hardwood: You might need around 3-4 inches to ensure a clean cut.
- Metal: For metals, especially thicker ones, aim for 4-6 inches of spindle travel.
Adjusting spindle travel can often be done with a simple knob or lever on your drill press. But remember, always test on a scrap piece of material first! This little step can save you from making costly mistakes.
Ever tried drilling into metal without adjusting your spindle travel? I did once. Let’s just say, it was a lesson learned the hard way. My drill bit got stuck, and I spent more time trying to free it than I did on the actual project. Don’t be like me – adjust accordingly!
Understanding the optimal spindle travel range for your drill press not only enhances precision but also extends the life of your equipment. It’s the small details that make the biggest difference, right?
So, next time you’re setting up your drill press, take a moment to consider your spindle travel. It might just be the key to nailing (or should I say drilling?) your project perfectly!
Common Issues With Spindle Travel
Spindle travel on a drill press refers to the distance the spindle moves up and down. It is a crucial aspect of the drill press’s operation. Over time, issues can arise, affecting the precision and effectiveness of your drilling. Understanding these common issues can help you maintain your drill press in top condition.
Signs Of Problems
Problems with spindle travel can manifest in various ways. The drill bit may not reach the desired depth, or it may wobble. You might also notice unusual noises or vibrations during operation. These signs indicate that the spindle travel mechanism needs attention.
Troubleshooting Tips
First, check for any dirt or debris in the spindle area. Clean it thoroughly. Next, inspect the spindle for wear and tear. If you find any damage, consider replacing the spindle. Also, ensure that all bolts and screws are tight. Loose components can cause instability. If the problem persists, consult the drill press manual for specific guidance.
Enhancing Spindle Travel Performance
Spindle travel on a drill press determines the depth a drill bit can move. Improving spindle travel performance ensures precise and efficient drilling. Two main factors influence this: maintenance practices and upgrading components. Let’s dive into these aspects.
Maintenance Practices
Regular maintenance keeps your drill press in top condition. Start by cleaning the spindle and surrounding area. Dust and debris can affect performance. Use a soft brush or cloth to remove particles.
Lubrication is key. Apply oil to the spindle and moving parts. This reduces friction and wear. Check the manufacturer’s guidelines for the best lubricant. Over time, parts may loosen. Tighten bolts and screws to maintain stability.
Inspect the spindle for signs of wear. Look for scratches or dents. Replace worn parts to avoid further damage. Consistent maintenance extends the life of your drill press.
Upgrading Components
Sometimes, maintenance isn’t enough. Upgrading components can improve spindle travel. Consider replacing the spindle with a higher-quality option. Look for spindles with better materials and precision.
Upgrade the drill press motor. A more powerful motor can handle tougher materials. This results in smoother spindle travel. Also, consider improving the quill feed mechanism. A smoother feed enhances control and accuracy.
Look at the drill press table. A stable, adjustable table supports better drilling. Align the table correctly to ensure accurate spindle travel. These upgrades enhance overall performance and precision.
Safety Considerations
Understanding spindle travel on a drill press is crucial for safe operation. Safety should always be your top priority. This section will discuss key safety considerations you must follow.
Proper Usage Techniques
Ensure the drill press is on a stable surface. Always secure the material with clamps. Never use your hands to hold the material. This prevents slipping and accidents.
Adjust the spindle travel for the material thickness. Use the depth stop to avoid drilling too deep. Maintain a steady pace while drilling. This ensures better control and reduces the risk of injury.
Protective Gear
Wearing protective gear is essential. Use safety goggles to protect your eyes. Flying debris can cause serious harm. Wear gloves to protect your hands from sharp edges.
Wear a dust mask if working with materials that produce dust. This keeps your lungs safe. Also, secure loose clothing and tie back long hair. This prevents them from getting caught in the drill.
Credit: www.amazon.com
Frequently Asked Questions
What Is The Spindle Travel On A Drill Press?
The spindle travel on a drill press refers to the vertical distance the spindle moves. It typically ranges from 2 to 6 inches, depending on the model. Check your drill press manual for exact specifications.
What Is Drill Press Travel?
Drill press travel is the distance the spindle moves up and down. It determines the maximum drilling depth.
What Is A Spindle Drill Press?
A spindle drill press is a machine tool used for drilling precise holes in various materials. It features a vertically adjustable spindle and a fixed drill head.
What Does The Spindle Lock Do On A Drill Press?
The spindle lock on a drill press holds the spindle in place. It prevents rotation for easier bit changes and adjustments. This feature ensures safety and accuracy during drilling operations.
Conclusion
Understanding spindle travel on a drill press is essential. It determines drilling depth. This knowledge helps in choosing the right drill press. Accurate drilling ensures better project outcomes. Always check spindle travel before starting your work. It saves time and reduces errors.
Remember, a well-informed choice leads to successful projects. Happy drilling!
